ROGUE SX800
ROGUE SX800
Couldn't load pickup availability

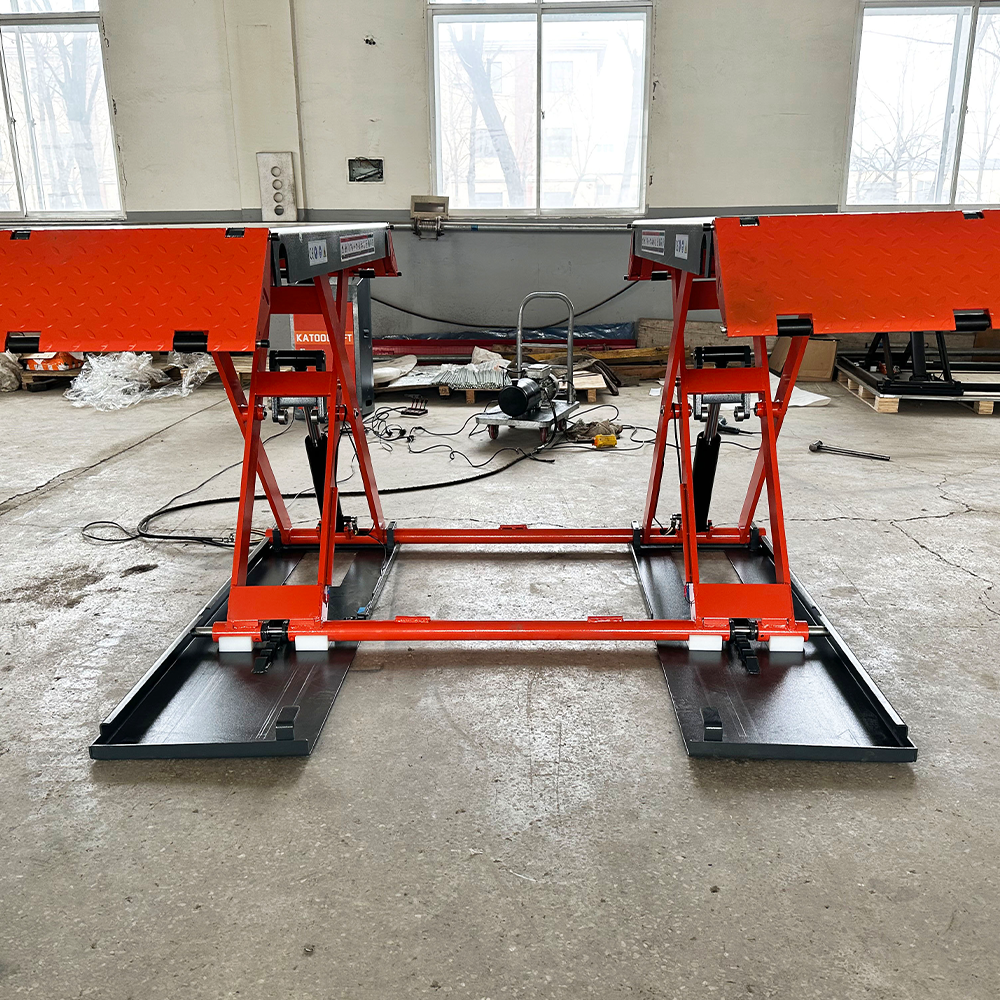

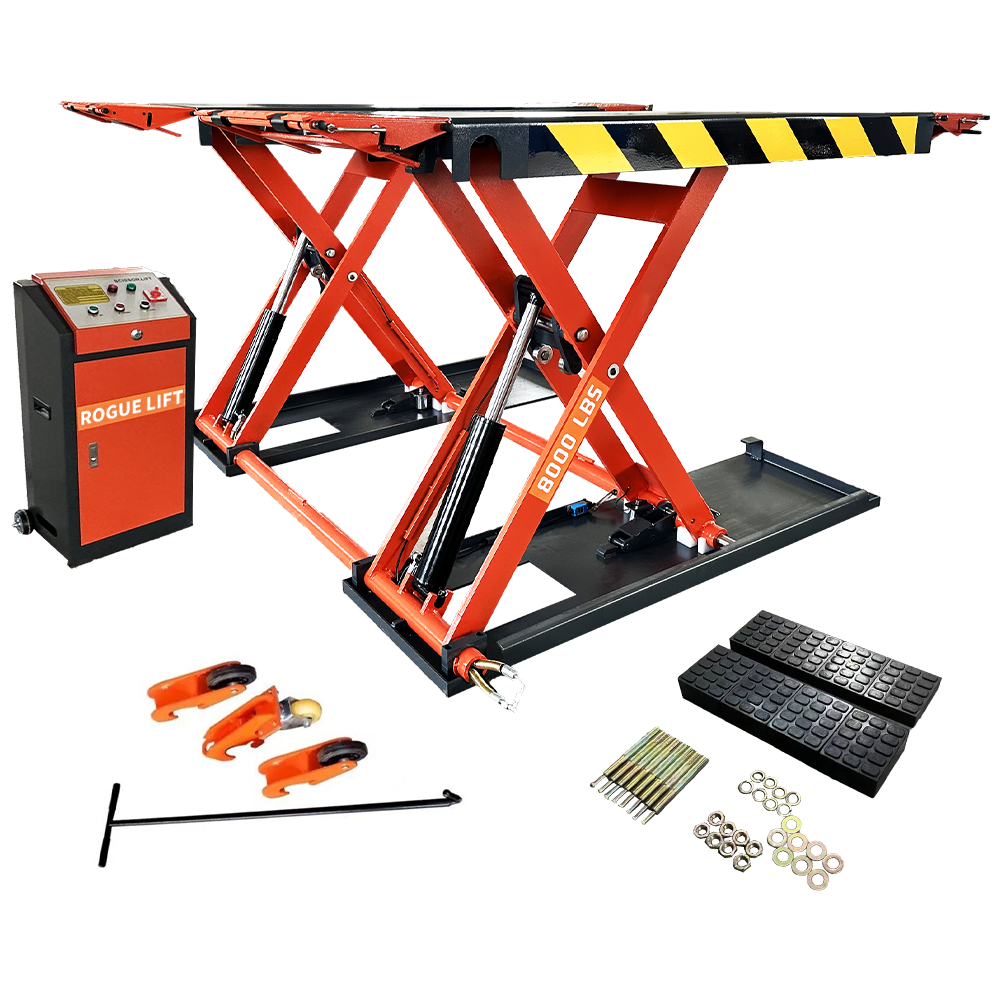

Engineered for reliable daily workshop performance, this 8000 lbs scissor lift is purpose-built to handle cars, SUVs, and light commercial vehicles, streamlining undercarriage inspections, tire service, and precision wheel alignment tasks.
The ultra-low 110mm (4.3") minimum height makes it ideal for low-profile vehicles and compact garages, requiring no deep pit modifications. A generous 1200mm (47") maximum lift height ensures complete, unobstructed access to every service point.
Powered by a high-efficiency 110V/220V dual-voltage, 60Hz single-phase motor, it delivers a smooth, fast 30-second lifting cycle, significantly boosting workshop productivity and service throughput.

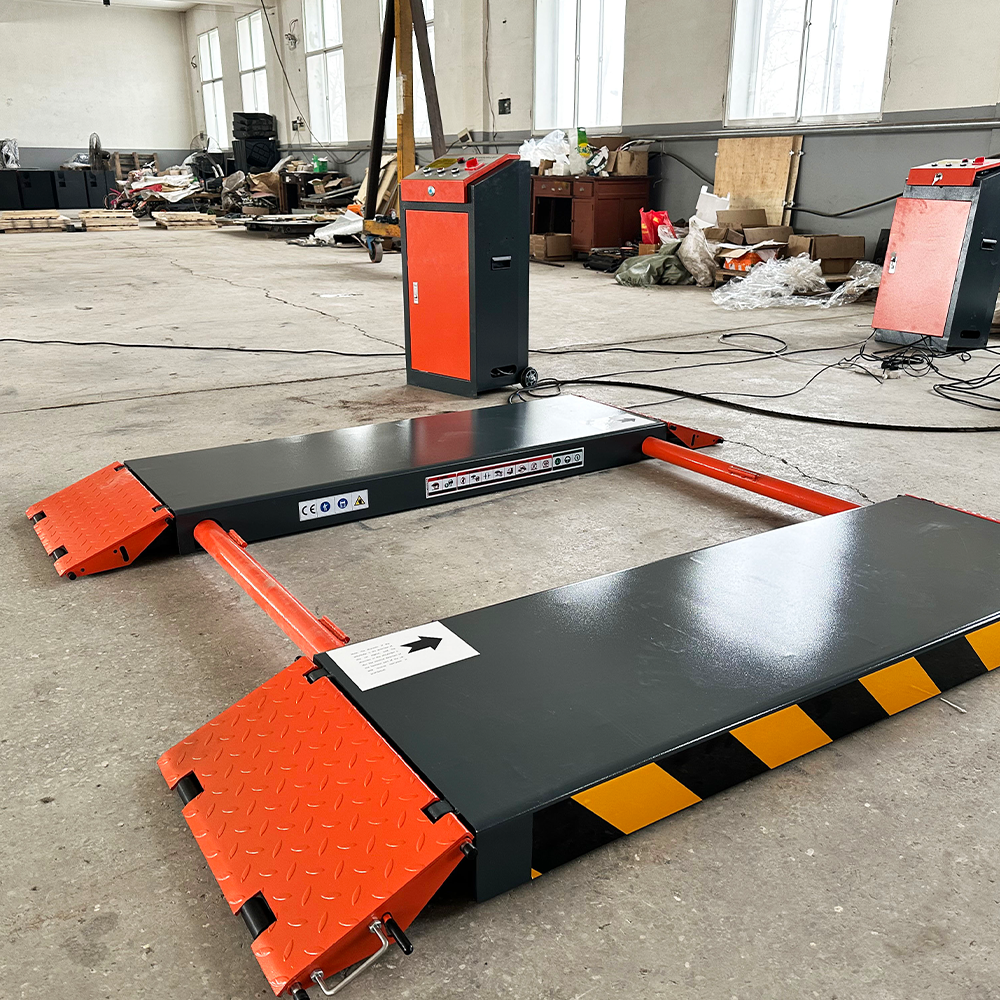

The robust 2070×530mm (81.5"×20.1") platform, with an 820mm (32.2") width between platforms, provides ample, stable space for most passenger vehicles, making it a versatile solution for any professional auto shop.
| Special points | Technical parameters |
| CAPACITY | 8000lbs/3628kg |
| MAX. LIFTING HEIGHT | 1200mm / 47" |
| MIN. LIFT HEIGHT | 110mm/ 4.3" |
| PLATFORM WIDTH | 530mm/ 20.1" |
| PLATFORM LENGTH | 2070mm/ 81.5" |
| WIDTH BETWEEN PLATFORMS | 820mm/ 32.2" |
| TOTAL LENGTH | 2070mm/ 81.5" |
| LIFTING TIME | 30S |
| MOTOR | 110V/220V,60HZ,1PH |
