ROGUE ST880
ROGUE ST880
Couldn't load pickup availability

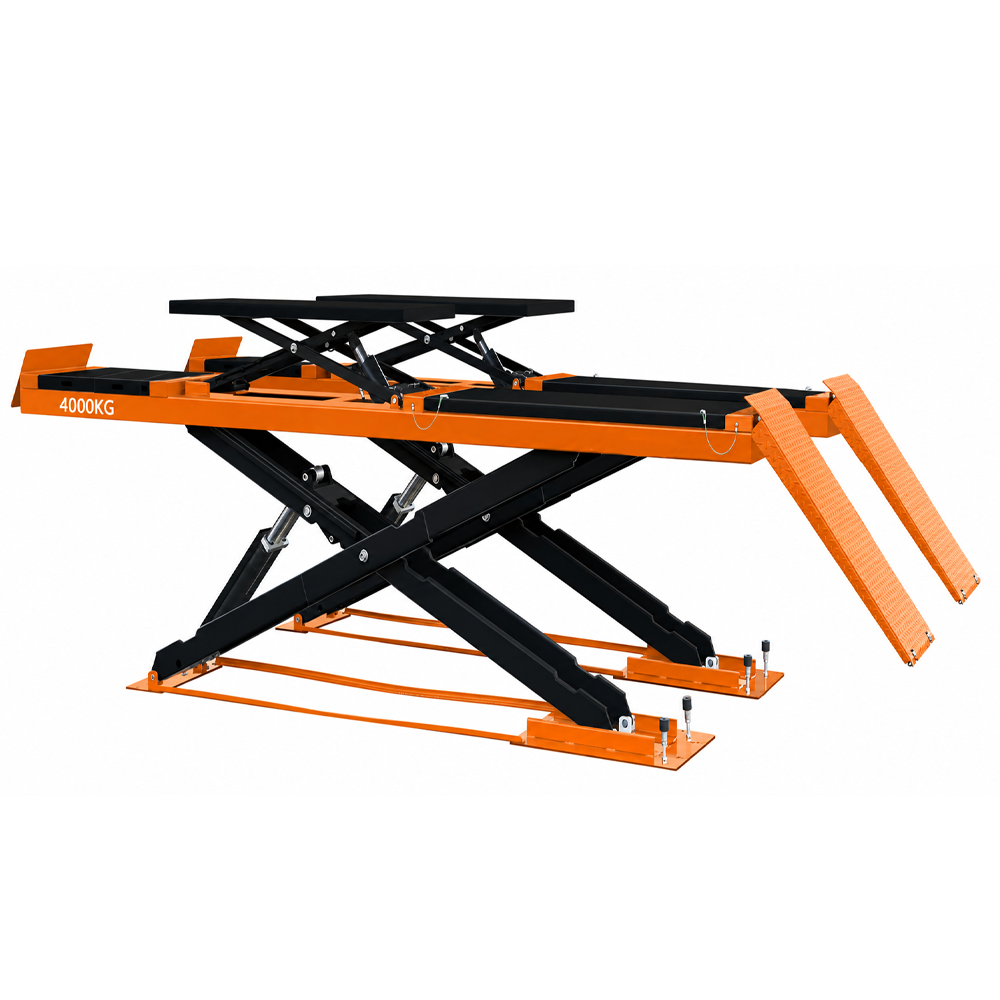

Upgrade your workshop efficiency with our 4000kg ultra-thin scissor lift, purpose-built for seamless undercarriage maintenance, tire service, and precision wheel alignment.
The 200mm minimum height eliminates the need for deep pits, making it perfect for low-profile sports cars and compact garages. With a 1750mm main lift height and 350mm sub-lift, it delivers full access to every part of the vehicle.
Boasting a spacious 4500×645mm platform, it fits most passenger vehicles comfortably. The 3.0kW dual-voltage (380V/220V) motor and 24MPa premium hydraulic system ensure smooth, stable lifting in just 50–70 seconds, cutting down service time significantly.
Safety is built in with a reliable pneumatic safety lock, requiring only standard 0.6–0.8MPa air supply. At 2320kg, it offers robust stability for daily professional use.

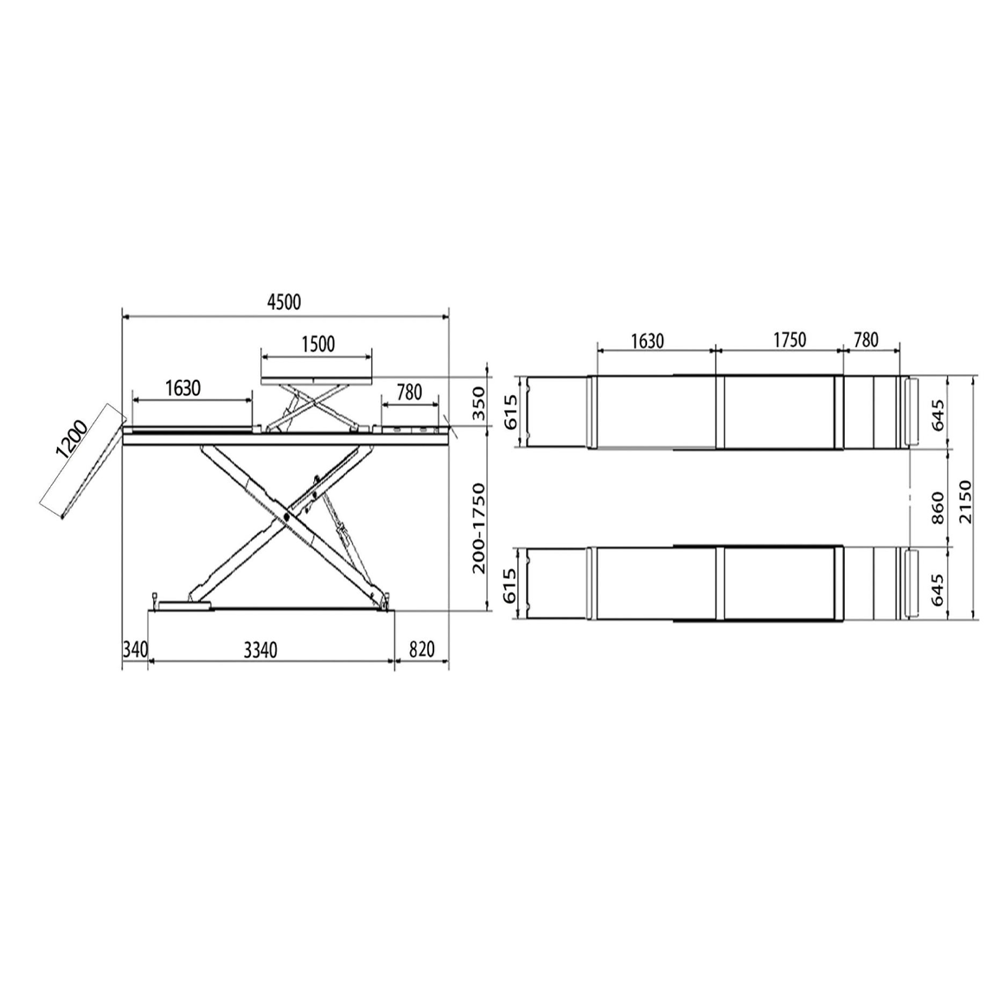

| Special points | Technical parameters |
| Lifting Capacity | 8800lb/4000kg |
| Lifting Height：Main Unit | 68.8”/1750mm |
| Lifting Height：Sub Unit | 13.7”/350mm |
| Minimum Height | 7.8”/200mm |
| Lifting Time | 50s-70s |
| Platform Length | 177”/4500mm |
| Platform Width | 25”/645mm |
| Motor Power | 380V/220V-3.0kW |
| Rated Oil Pressure | 24MPa |
| Air Supply Pressure | 0.6-0.8MPa |
| Unit Weight | 5114lb/2320kg |
