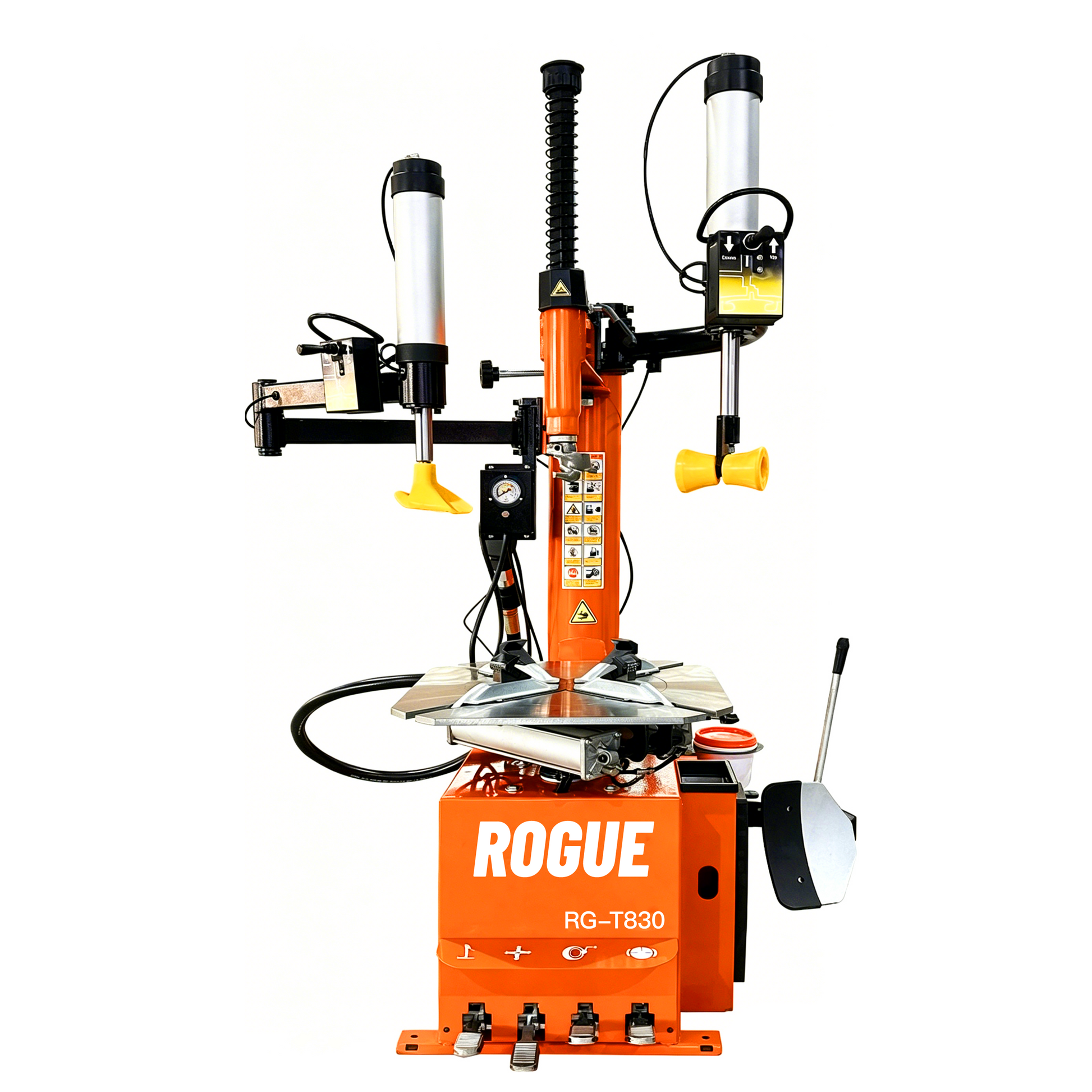

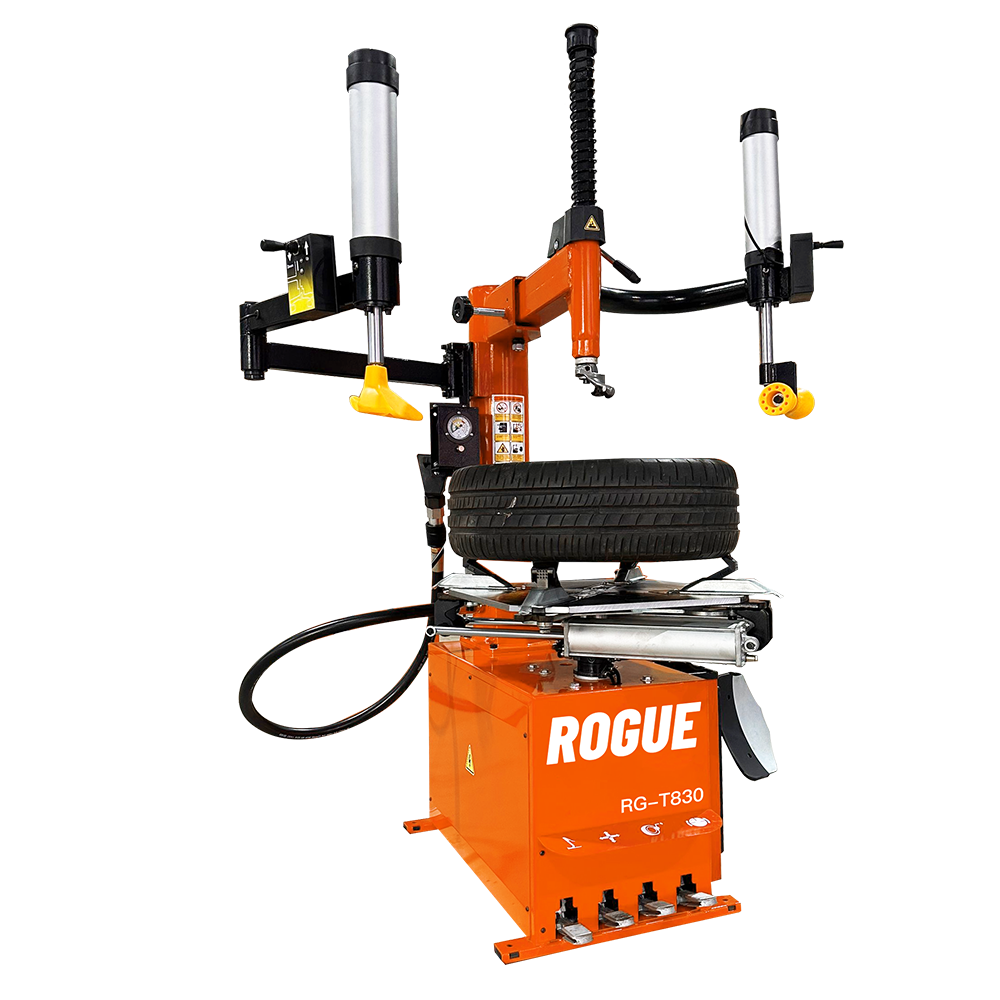

ROGUE T830
ROGUE T830
Couldn't load pickup availability

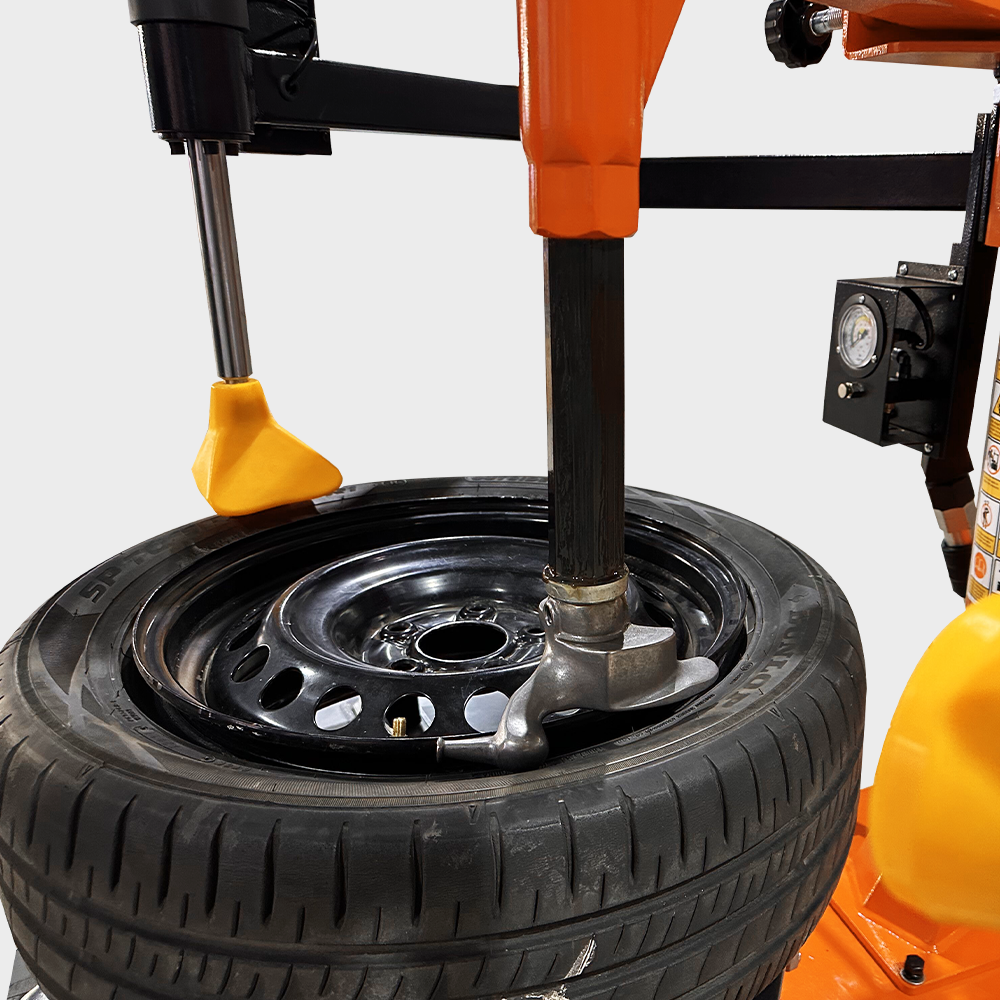

Dual Pneumatic Assist Arms
Designed for the toughest tires. The two power-assist arms provide the necessary down-force and positioning to handle stiff-sidewall run-flats and low-profile tires without the struggle. It’s like having an extra pair of hands that never gets tired.
Integrated High-Pressure Bead Seater
No need for external tools. Our built-in bead seating system delivers a powerful, concentrated burst of air directly through the clamping jaws. It seats stubborn beads instantly and safely, controlled by a simple foot pedal.

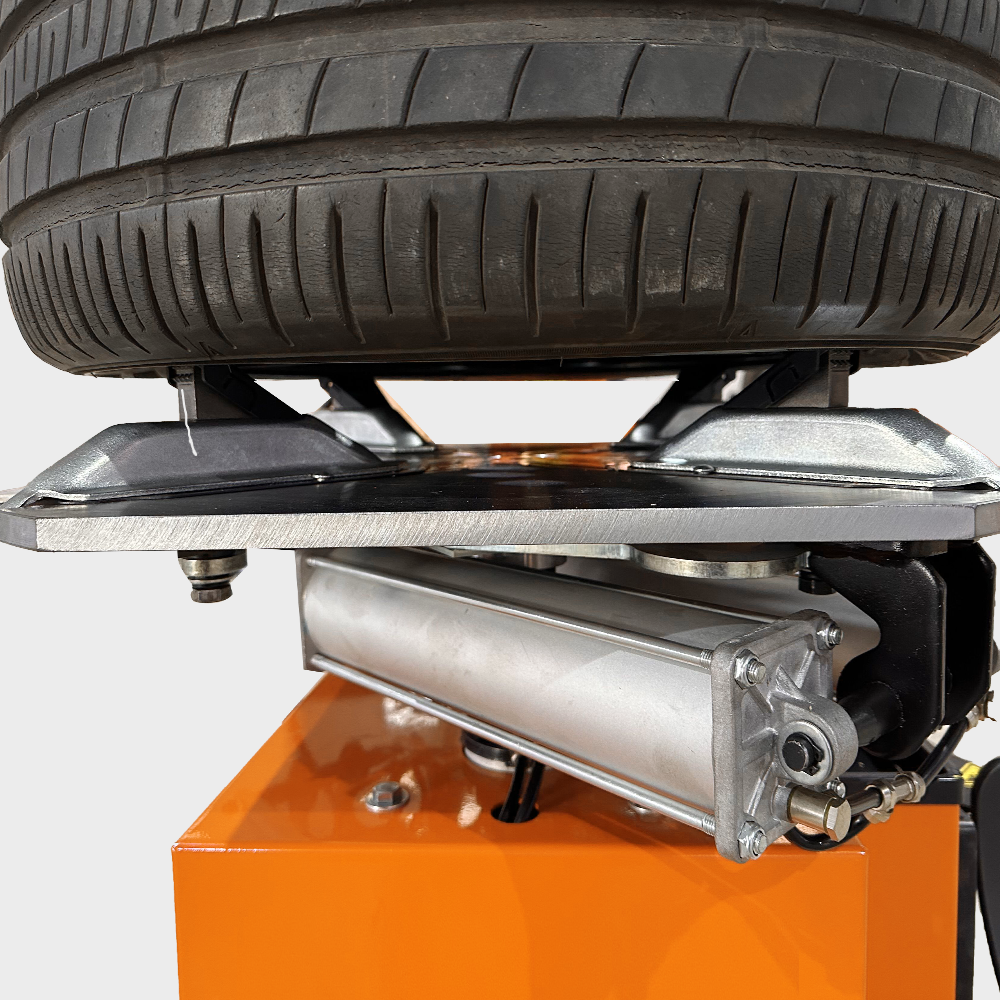

12" - 24" Clamping Range
Covers the professional standard. The adjustable four-jaw chuck securely grips a wide range of wheel sizes from 12 to 24 inches. It’s the versatile choice for everything from standard passenger cars to most light trucks.
High-Torque Turntable & Motor
The heart of the machine is a high-torque electric motor paired with a reversible turntable. It provides consistent rotation power, ensuring you never stall mid-job even when handling heavy-duty tire assemblies.
Reinforced Box-Frame Construction
We don’t skimp on steel. The RG-T830 is built on a heavy-duty box frame to minimize flexing under load. Combined with stainless steel cylinders and a maintenance-free gearbox, this machine is built to stay in service for the long haul.
•4 Clamps (Internal / External)
• Dual Pneumatic Cylinders
• Adjustable Pneumatic Blade
• Vertical Shaft / Tool Head Positioning
• Inflation System
• Inflation Gauge & Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tire Iron

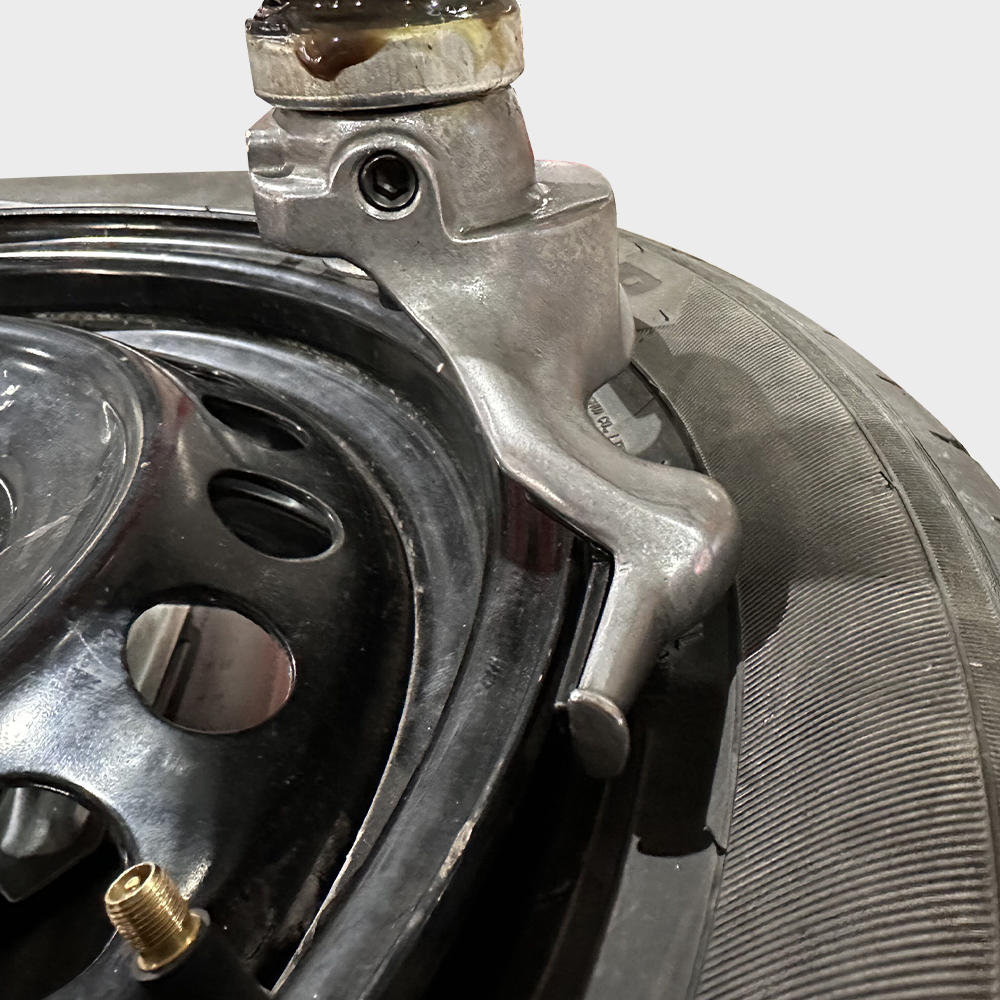

• Alloy-Steel Mount-Demount Head
• Nylon Mount-Demount Head

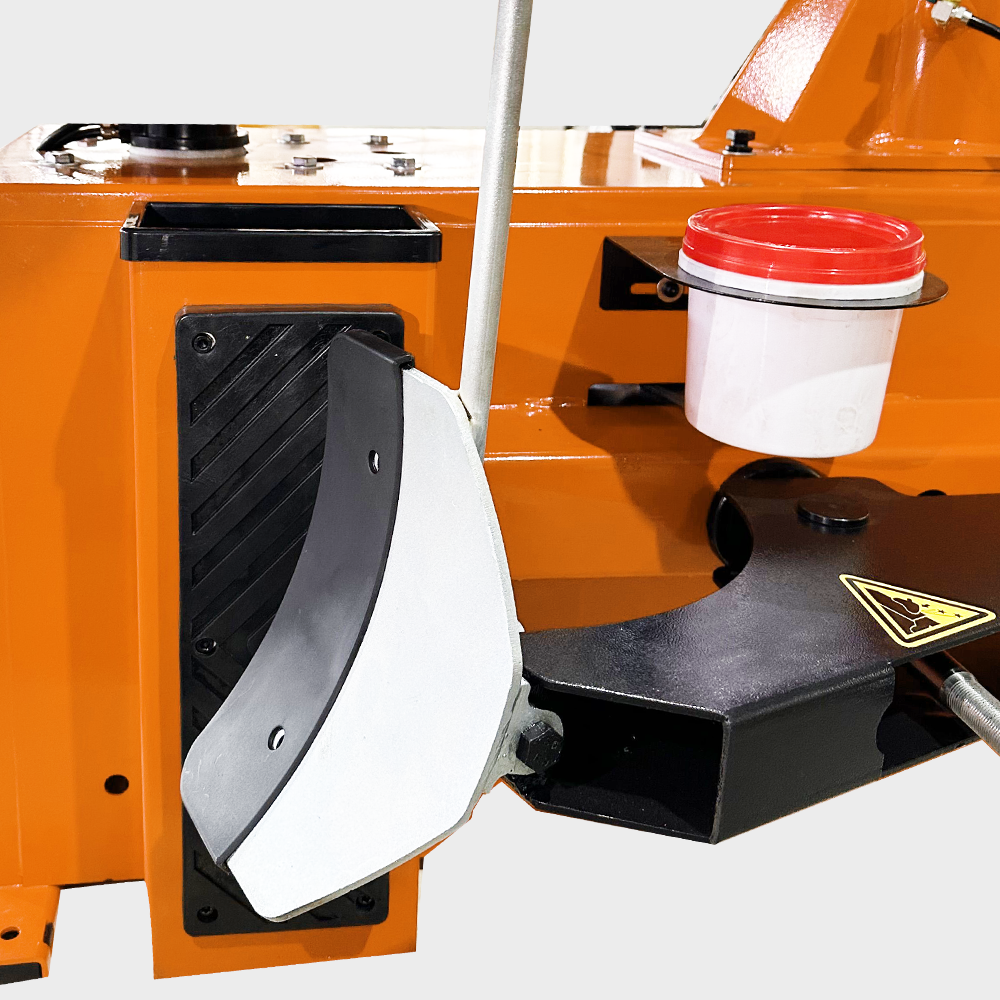

• Large Soap Bucket
• Soap Brush
• TurboBlast™ Bead Seating System
• Tool Tray / Bin Storage

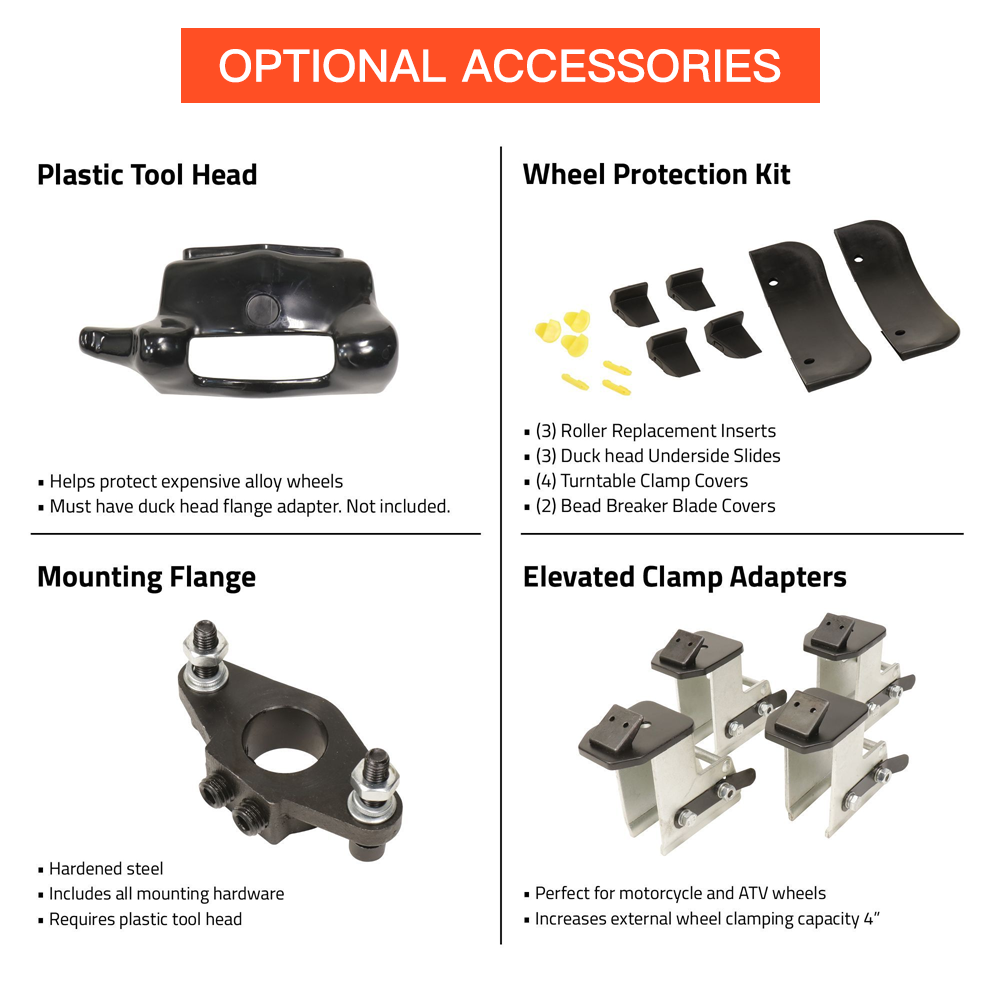

• Motorcycle Turntable Clamps (optional)
| Special points | Technical parameters |
| Outer rim | 10"一22" |
| Inner rim | 12"一24" |
| Maximum tire diameter | 1040mm (41 ") |
| Maximum tire width | 380mm (15 " ) |
| Pressing force (10bar) | 5510lbs. (2500kg) |
| Operating air pressure | 8bar-10bar (116-145psi) |
| Maximum charge pressure | 3.5bar (50psi) |
| Power supply voltage | 120V 1ph/220V 3ph |
| Motor power | 1.1kw /0.75kw/1.5kw |

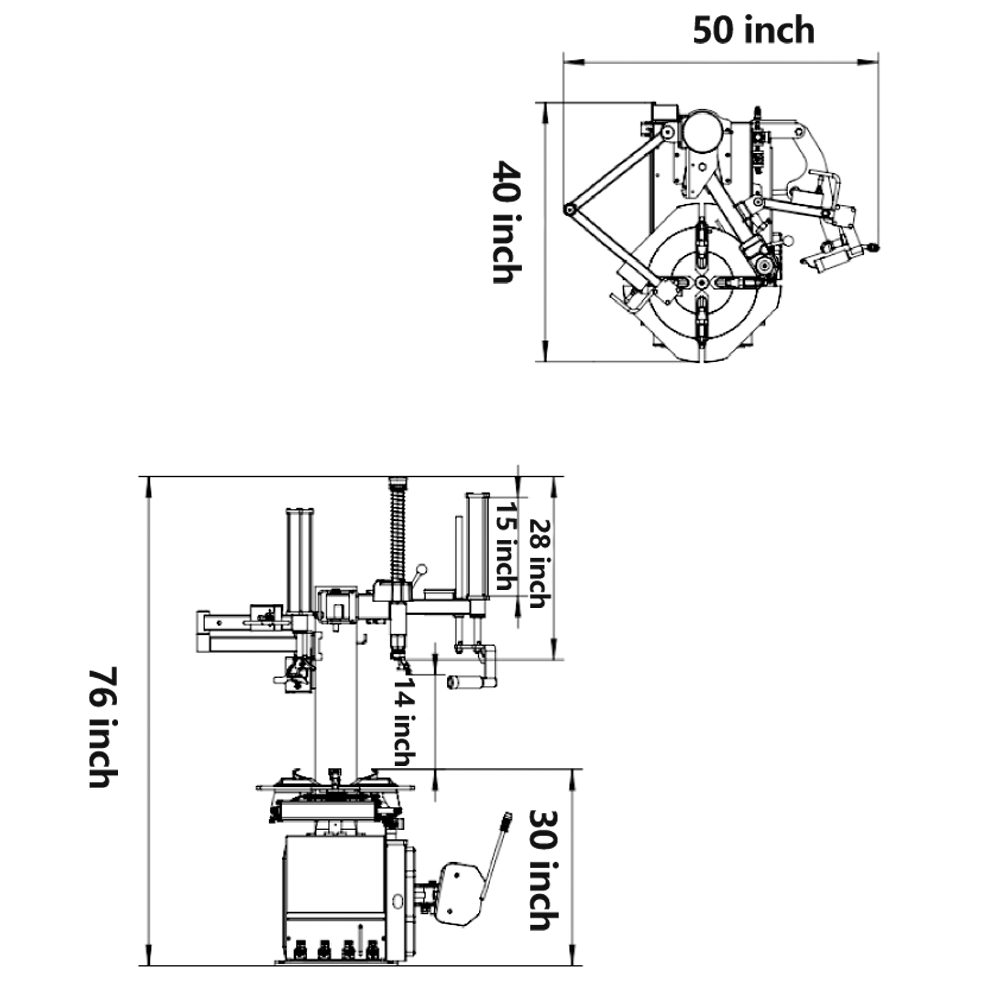

| Outline dimension | 1120mmx750mmx860mm(44in×29in×33in) |
| Net weight | 485 lbs. (220kg) |
| Working state noise | <70dB(A) |
