ROGUE T810

Optimized Service Speed
The RG-T810 is engineered for high-volume, rapid wheel service. Its intuitive swing-arm design allows for quick positioning, making it the perfect choice for shops focusing on standard passenger vehicle wheels and light trailer tires.

Heavy-Duty Tabletop Construction

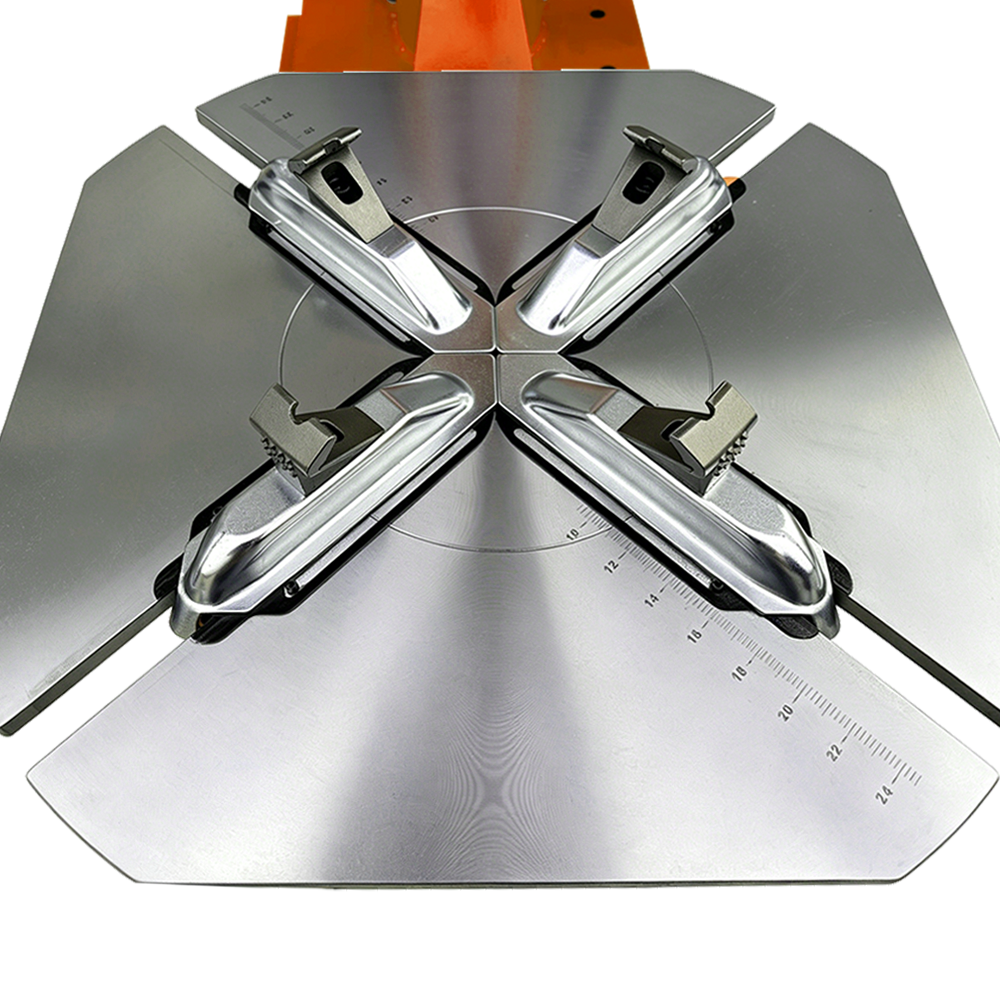

Despite its compact footprint, the RG-T810 features a reinforced electric tabletop with high-torque operation. The self-centering four-jaw chuck ensures a firm internal or external grip, preventing rim slippage during the toughest mounting tasks.

Maintenance-Free Reliability

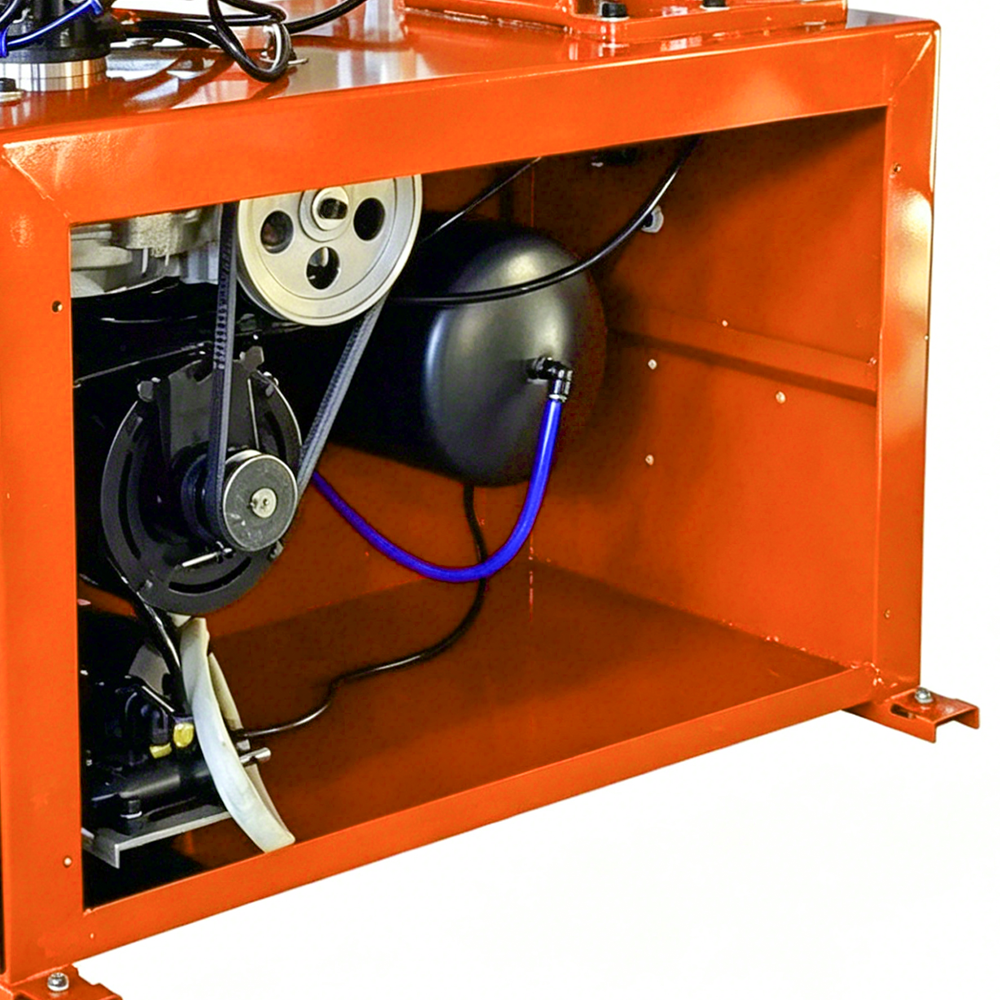

Built with high-quality pneumatic components and a rugged steel frame, this unit is designed to withstand the daily rigors of a busy shop environment. The simplified mechanical structure means less downtime and lower long-term maintenance costs.

High-Pressure Bead Breaker
Featuring a powerful side-mounted bead breaker with a non-marring rubber pad, the RG-T810 effortlessly handles stubborn beads while protecting the finish of high-value alloy wheels.

Space-Saving Design
The RG-T810 is the ideal solution for smaller workshops or mobile service vans. Its streamlined profile provides professional-grade tire changing power without occupying excessive floor space.

•4 Clamps (Internal / External)

• Dual Pneumatic Cylinders

• Adjustable Pneumatic Blade

• Vertical Shaft / Tool Head Positioning

• Inflation System

• Inflation Gauge & Integrated Air Dump Valve

• Inflation Pressure Regulator/Limiter

• Water Filter

• Oiler / Lubricator

• Air Regulator

• Bead Tool/Tire Iron

• Alloy-Steel Mount-Demount Head

• Nylon Mount-Demount Head

• Large Soap Bucket

• Soap Brush

• TurboBlast™ Bead Seating System

• Tool Tray / Bin Storage

• Motorcycle Turntable Clamps (optional)

Special points	Technical parameters
Rim clamp from outside	10" - 19"/22"/24"（254mm-482mm/558mm/609mm）
Rim clamp from inside	12" -21"/24"/26" （304mm-533mm/609mm/660mm）
Max. wheel diametery	37"/41" （960mm/1040mm）
Tire width	3"-15"   （76mm-381mm）
Working air pressure	0.8-1.2Mpa
Motor	380v/220v/110v
