ROGUEAUTOEQUIP

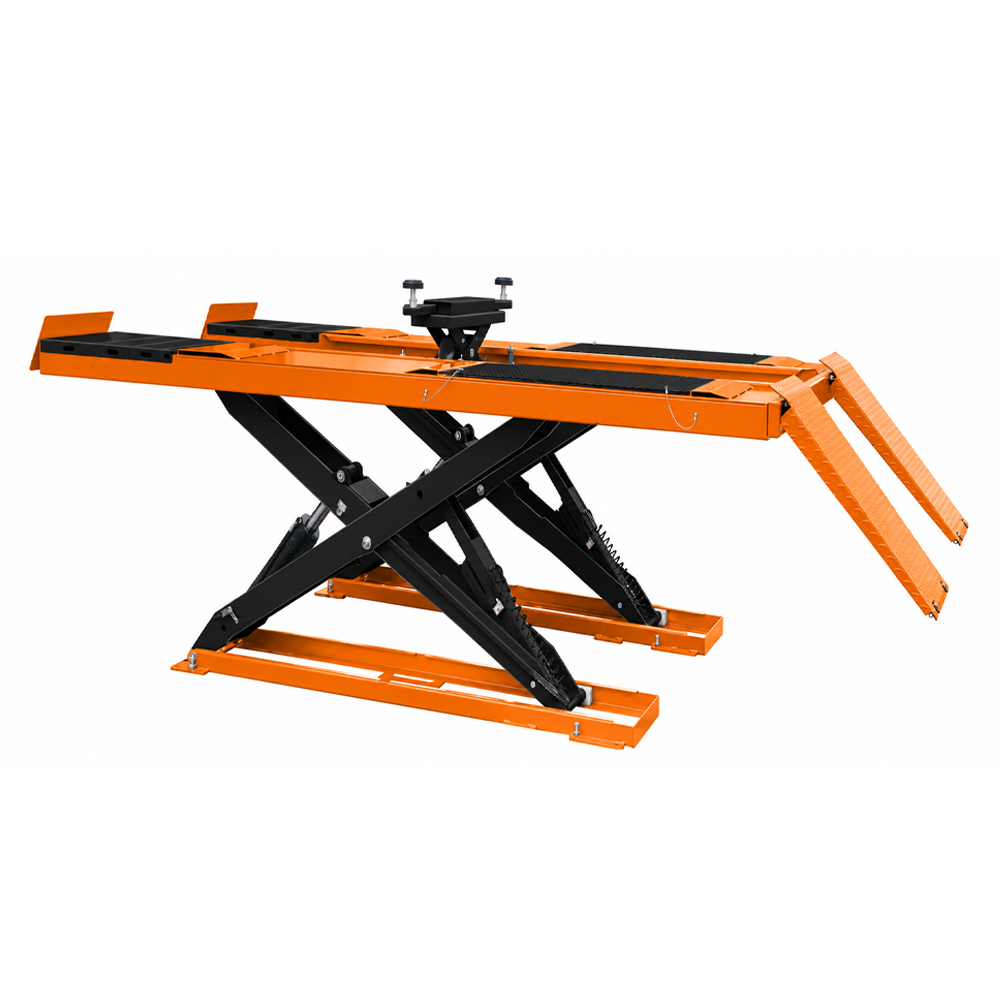

RG-STJ880
RG-STJ880
Couldn't load pickup availability
1. High strength Q355B manganese plate arm.
2. Pneumatic safety lock.
3. Electronic control box with front and back door
4. 24V safe electronic control.
5. 4 cylinders structure, stable running.
6. Shot blasting surface treatment, advanced outdoor powder automatic electrostatics spray,
aesthetic and durable.
7. CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine, weldingrobots and other large processing devices, accurate size and smooth surface.

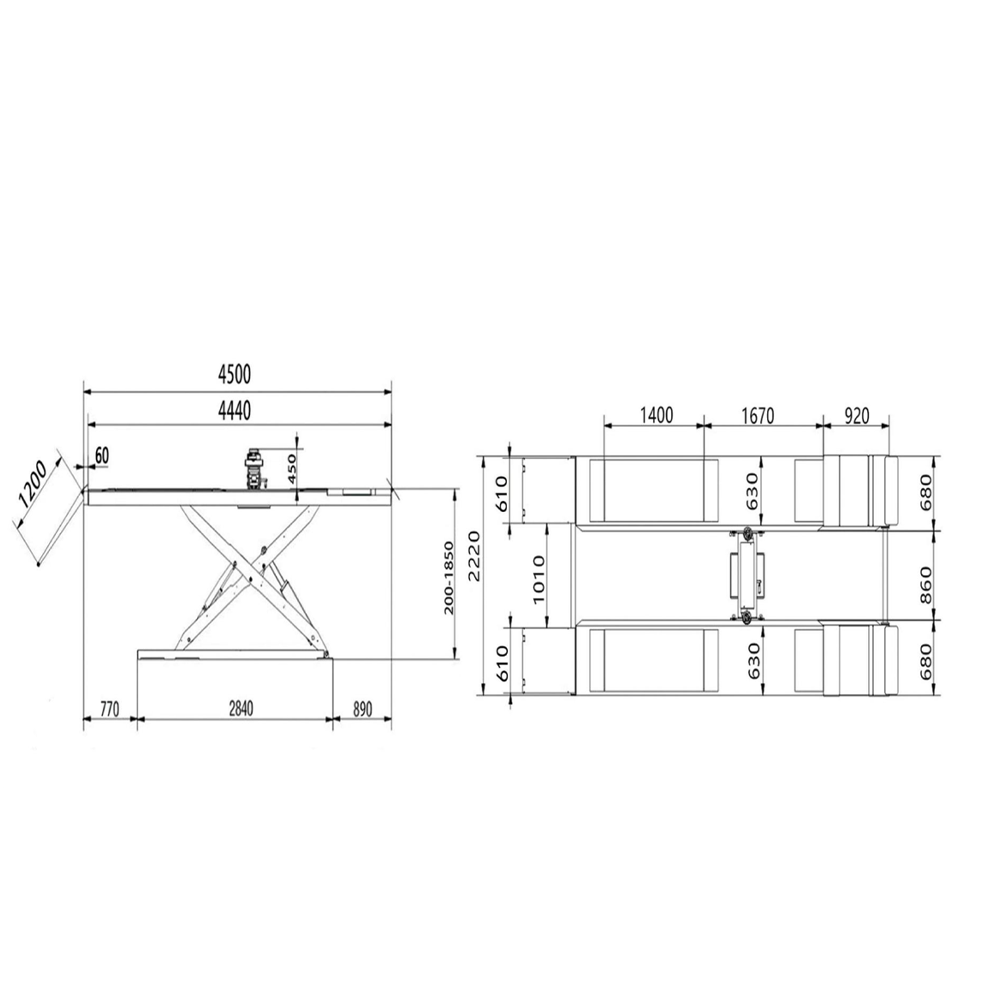

| Special points | Technical parameters |
| Lifting Capacity | 4000kg/8800lbs |
| First Lifing Height | 1850mm/72in |
| Secend Lifting Height | 450mm/17.7in |
| Min. Height | 200mm/7.8in |
| Lifting Time | 70-90s |
| Platfomm Length | 4500mm/177in |
| Platfomm Width | 680mm/26.7 |
| Motor Power | 3.OKW-380V or 3. OKW-220V |
| Weight | 2100kg/4629lbs |
